Lowrance HDS PRO 9 Without Sonar

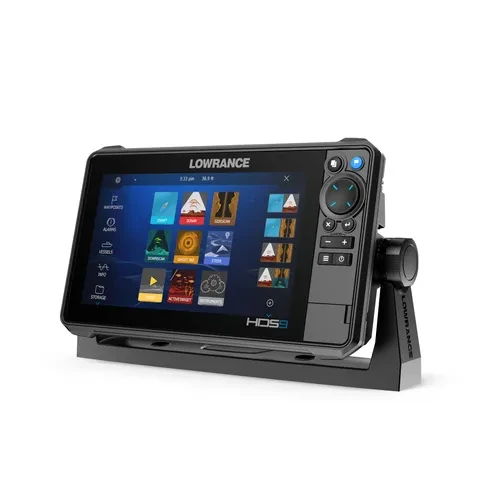

Lowrance HDS-9 PRO – Advanced Sonar and Chart Plotter

The Lowrance HDS-9 PRO is a powerful and versatile sonar and chart plotter that gives you the latest technology to optimize your fishing experience. Although this model does not include a transducer, it is ready for ActiveTarget® 2 Live sonar, allowing you to see fish movements in real time and adjust your strategy instantly. You can also upgrade to Active Imaging™ HD, which combines CHIRP, SideScan and DownScan Imaging™ to provide high-resolution images of fish and underwater structures.

The 9-inch SolarMAX™ HD touchscreen delivers sharp and clear image quality even in strong sunlight and through polarized sunglasses. With wide viewing angles and the possibility of displaying several information panels at the same time, you always have full control over your fishing information.

HDS-9 PRO comes with a global basemap and supports upgrades to C-MAP® DISCOVER, REVEAL and other chart providers. With C-MAP Genesis Live you can also create your own maps in real time, which gives you a customized and detailed picture of the underwater environment. The device is also compatible with ActiveTarget® scout view and Ghost® trolling engine 360, providing improved precision and a better overview.

With built-in NMEA 2000®, Bluetooth® and wireless connections you can control all the boat's systems directly from the touchscreen. You can manage the Power-Pole® anchor, Ghost® trolling motor, autopilot and Lowrance Outboard Pilot, giving you a seamless boating experience.

The HDS-9 PRO also features FishReveal™, which makes it easier to identify fish by combining sonar readings with structural images from SideScan and DownScan Imaging™.

Specifications:

• Screen size: 9 inches
• Dimensions: 280 mm x 166.7 mm x 77.7 mm
• Voltage: 12V DC (10.8-17V DC)
• Power consumption: Max 2.9A @ 13.8V DC with full brightness and sonar active
• Mount Type: Gimbal Bracket, Front Dash Flush Mount, Rear Dash Flush Mount

What is included in the package:

• PC-30-RS422 power cable for HDS series
• HDS-9 LIVE sunscreen
• HDS-9 LIVE / Elite FS™ 9 bracket
