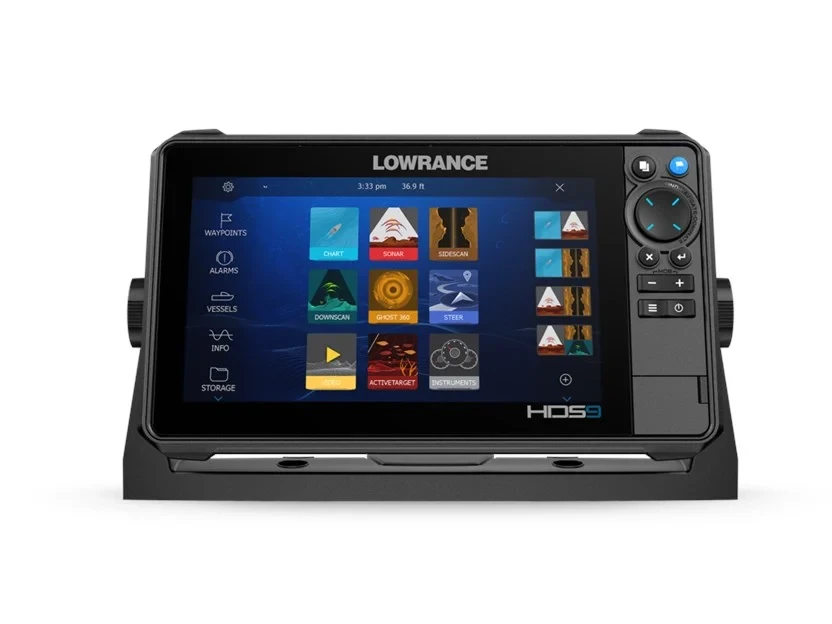

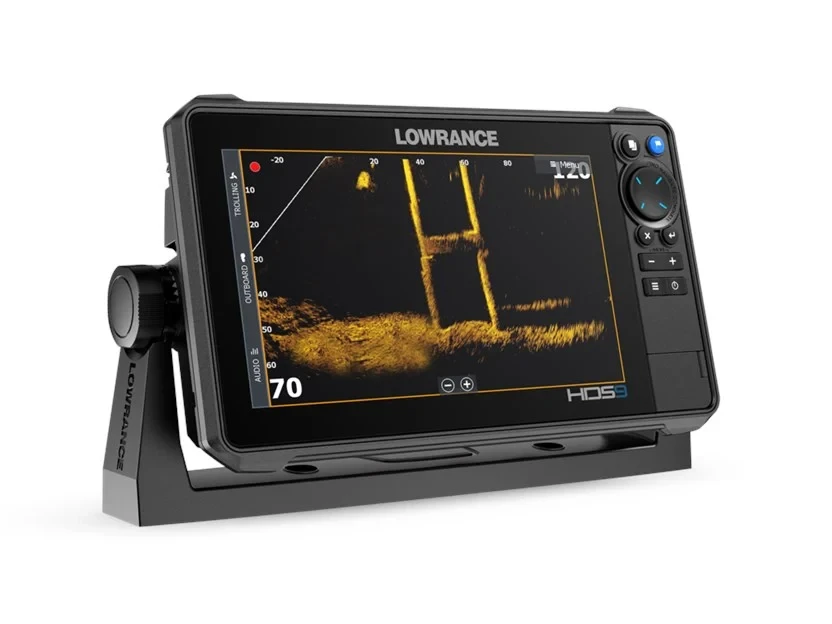

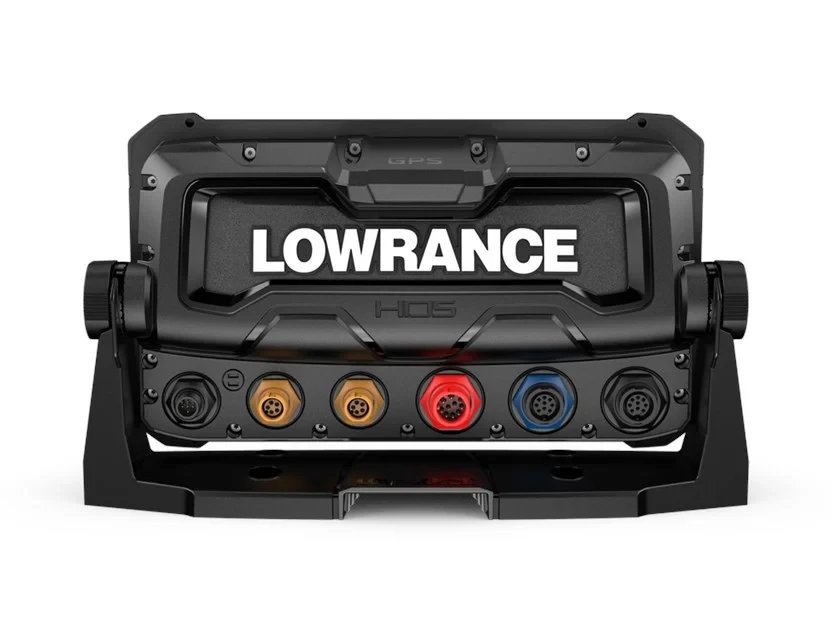

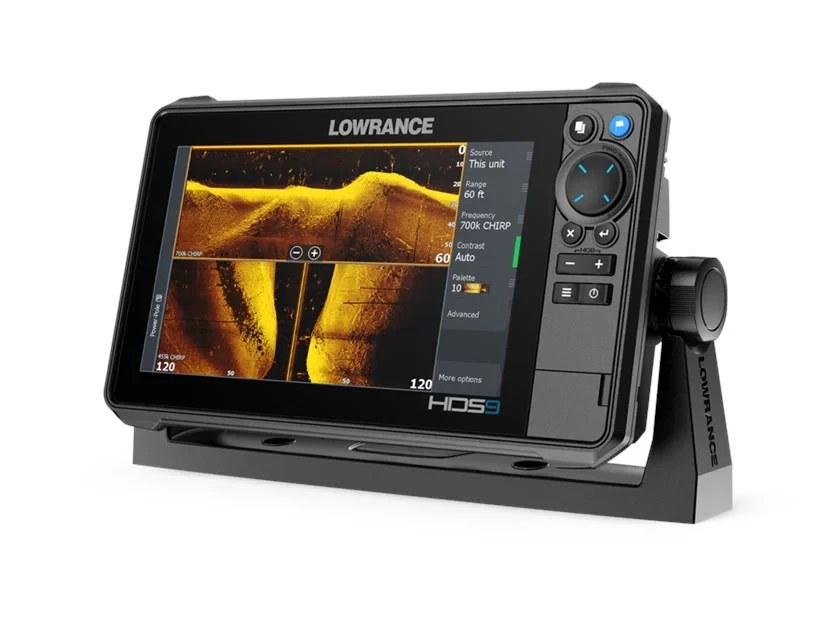

Lowrance HDS PRO 9 with Active Imaging™ HD

Lowrance HDS-9 PRO – Advanced Sonar and Chart Plotter System

The Lowrance HDS-9 PRO is a high-performance sonar and chart plotter unit that takes your fishing experience to a new level. With the latest ActiveTarget® 2 Live sonar technology, you can see in real time how the fish are reacting to your bait, making it easier to adjust your strategy for maximum success. In addition, the new Active Imaging™ HD transducer delivers extremely detailed images of both fish and underwater structures, helping you identify the most promising fishing spots.

The high-resolution SolarMAX™ HD touchscreen ensures you get a crystal-clear image in all lighting conditions, even through polarized sunglasses and at extreme viewing angles. The HDS-9 PRO also supports 1.2 MHz Active Imaging™ HD, which combines Lowrance CHIRP, SideScan and DownScan Imaging™ for an exceptionally detailed view of the underwater environment. FishReveal™ also improves fish identification by combining sonar readings with SideScan and DownScan, making it easier to see and identify fish on screen.

For navigation, the HDS-9 PRO offers support for C-MAP® DISCOVER and REVEAL charts, as well as the ability to create your own maps in real time with C-MAP Genesis Live. This gives you the most detailed charts and the ability to customize them to your needs.

With full network integration, you can control your entire boat from a single screen, including the Power-Pole® anchor, Ghost® trolling motor and autopilot – all via the touchscreen. The unit also has built-in NMEA 2000® and Bluetooth®, enabling smartphone notifications to be received and integration with other marine equipment.

Thanks to support for ActiveTarget® Scout view and Ghost® trolling engine 360, you get a whole new level of mapping and an even clearer picture of underwater conditions.

Specifications:

• Screen size: 9 inches
• Dimensions: 280mm (H) x 166.7mm (W) x 77.7mm (D)
• Voltage: 12V DC (10.8-17V DC)
• Power consumption: Max 2.9A @ 13.8V DC with full brightness and active sonar
• Mounting: Gimbal Bracket, Front Dash Flush Mount, Rear Dash Flush Mount

What is included in the package:

• PC-30-RS422 power cable for HDS series
• HDS-9 LIVE sunscreen
• HDS-9 LIVE / Elite FS™ 9 bracket
• Active Imaging™ HD 3-in-1 sonar transducer
