Lowrance HDS PRO 16 with Active Imaging™ HD

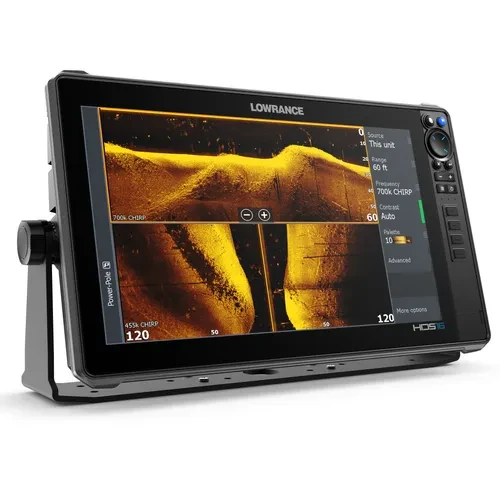

Lowrance HDS-16 PRO – Advanced Sonar and Chart Plotter

The Lowrance HDS-16 PRO is the most powerful sonar and chart plotter in the HDS series and offers the latest technology to take your fishing experience to the next level. With the large 16-inch SolarMAX™ HD touch screen, you get crystal clear images that are fully legible even in strong sunlight or through polarized glasses, ensuring optimal visibility in all light conditions. Regardless of the viewing angle, you see every detail clearly on the screen.

The HDS-16 PRO is compatible with ActiveTarget® 2 Live sonar, allowing you to see fish movements in real time and get instant feedback on how they react to your bait. With the Active Imaging™ HD 3-in-1 sensor, which combines CHIRP, SideScan and DownScan Imaging™, you get detailed images of both fish and underwater structures. This makes it easier to locate the best fishing areas and understand the underwater environment in detail.

The device comes with a global base map and supports upgrades to C-MAP® DISCOVER, REVEAL and other chart providers. In addition, you can create your own maps in real time with C-MAP Genesis Live, giving you full control over your navigation and fishing planning. ActiveTarget® scout view and Ghost® trolling engine 360 provide even better precision and an overview of underwater conditions.

The HDS-16 PRO has full network functionality with NMEA 2000®, Bluetooth® and wireless connections, allowing you to control your entire boat from bow to stern via the touchscreen. You can control key systems like the Power-Pole® anchor, Ghost® trolling motor, autopilot and Lowrance Outboard Pilot, giving you full control of your gear.

FishReveal™ improves fish identification by combining CHIRP sonar targeting with SideScan and DownScan structure images, so you can locate fish faster and more accurately. The high-resolution screen ensures that you never miss any important details beneath the surface.

Specifications:

• Screen size: 16 inches
• Dimensions: 430.5 mm x 259.2 mm x 87.8 mm
• Voltage: 12V DC (10.8-17V DC)
• Power consumption: Max 4.1A @ 13V DC with full brightness and sonar active
• Mount Type: Gimbal Bracket, Front Dash Flush Mount, Rear Dash Flush Mount

What is included in the package:

• PC-30-RS422 power cable for HDS series
• HDS connection cover
• HDS-16 LIVE sunscreen
• HDS-16 LIVE bracket
• Active Imaging™ HD 3-in-1 transducer
