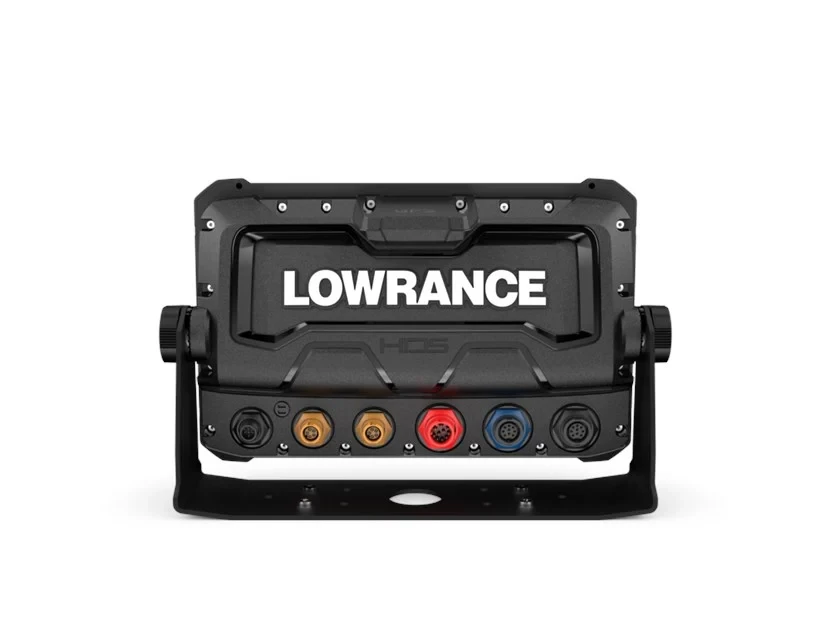

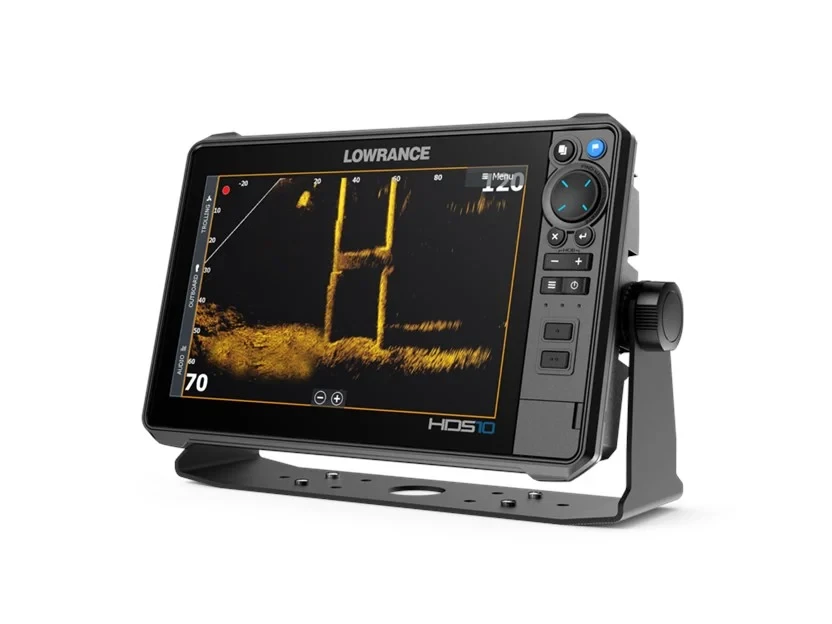

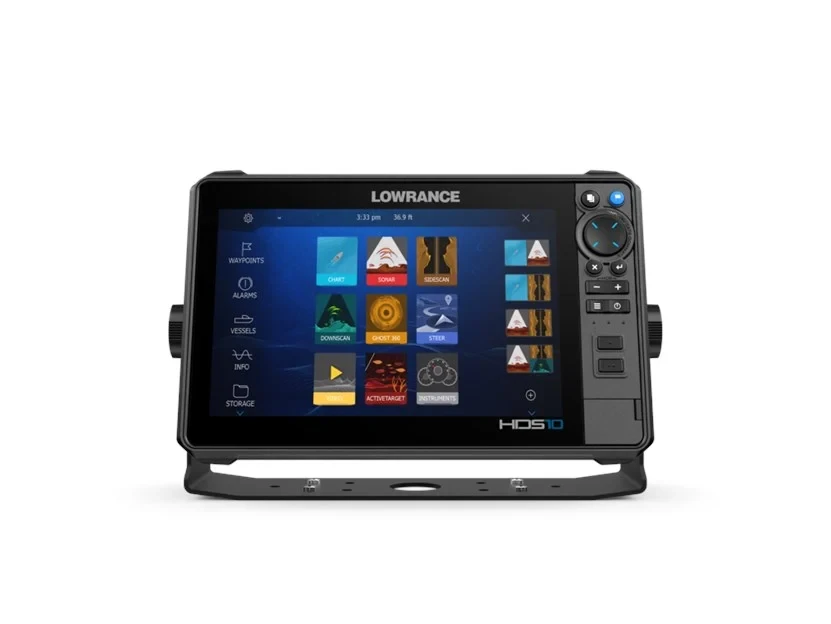

Lowrance HDS PRO 10 with Active Imaging™ HD

Lowrance HDS-10 PRO – Advanced Sonar and Chart Plotter

The Lowrance HDS-10 PRO is an advanced sonar and chart plotter that gives anglers access to the latest technologies for a better fishing experience. With ActiveTarget® 2 Live Sonar, you can see in real time how the fish are reacting to your bait, allowing you to adjust your strategy to maximize your chances of success. In addition, the unit comes with an Active Imaging™ HD transducer with 1.2 MHz technology, providing high-resolution images of both fish and underwater structures.

The large 10-inch SolarMAX™ HD touchscreen is designed to provide sharp images even in bright sunlight and can be read through polarized sunglasses. With FishReveal™, information from SideScan and DownScan Imaging™ is combined with CHIRP sonar, making the fish appear more clearly on the screen and easier to identify.

The HDS-10 PRO comes with a global base map and support for map options such as C-MAP® DISCOVER, REVEAL and Navionics®, as well as the ability to create your own maps in real time with C-MAP Genesis Live. The unit also features built-in Wi-Fi, NMEA 2000® and Ethernet, allowing boat equipment such as the Power-Pole® anchor, Ghost® trolling motor and autopilot to be controlled and integrated directly from the touchscreen.

Specifications:

• Screen size: 10 inches
• Dimensions: 294.61 mm x 193.15 mm x 82.57 mm
• Voltage: 12V DC (10.8-17V DC)
• Power consumption: Max 2.9A @ 13.8V DC with full brightness and sonar active
• Mount Type: Gimbal Bracket, Front Dash Flush Mount, Rear Dash Flush Mount

What is included in the package:

• PC-30-RS422 power cable for HDS series
• HDS-12 LIVE bracket
• HDS-12 LIVE sunscreen
• Active Imaging™ HD 3-in-1 sonar transducer
