Lowrance HDS 12 PRO No sonar transducer

Lowrance HDS-12 PRO – Advanced Sonar and Chart Plotter

The Lowrance HDS-12 PRO is a powerful sonar and chart plotter, equipped with the latest technology to enhance your fishing experience. Even without an included transducer, the unit is ready for ActiveTarget® 2 Live sonar, giving you real-time images of fish movements and reactions to your bait. You can also upgrade to Active Imaging™ HD, which combines Lowrance CHIRP, SideScan and DownScan Imaging™ to provide high-resolution and detailed images of underwater structures and fish.

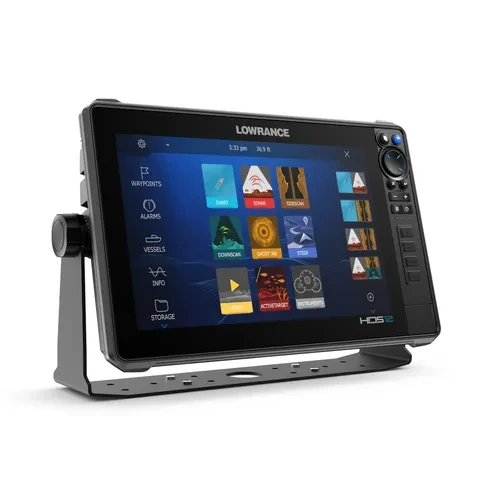

The 12-inch SolarMAX™ HD touchscreen offers superior image quality, with wide viewing angles and clear visibility even in bright sunlight or through polarized sunglasses. The fast and responsive touch screen makes it easy to navigate between maps and sonar functions. With FishReveal™ you get enhanced fish identification, where sonar readings are combined with details from SideScan and DownScan Imaging™ to make finding fish easier.

The HDS-12 PRO comes with a global base map, but can be upgraded with charts from C-MAP® DISCOVER, REVEAL and other chart providers. With C-MAP Genesis Live, you can also create your own real-time maps, giving you better precision and control over navigation and fishing planning. The device also supports new chart layers in ActiveTarget® scout view as well as Ghost® trolling engine 360, providing an even more comprehensive view of the underwater environment.

Thanks to NMEA 2000® and Bluetooth® connectivity, as well as wireless functions, you get full network functionality and can control all the boat's systems directly from the touchscreen. It includes Power-Pole® anchor, Ghost® trolling motor, autopilot and Lowrance Outboard Pilot. In addition, the device supports wireless connectivity and smartphone notifications, so you always have full control and access to important information.

Main functions:

✅ ActiveTarget® 2 Live Sonar – See fish movements in real-time
✅ Active Imaging™ HD – Crystal clear images of underwater structures and fish
​​​​​​​​ 2000® and Bluetooth® connectivity – Full control of the boat's systems
✅ C-MAP Genesis Live – Create detailed real-time maps
✅ Compatible with Ghost® trolling motor 360 – Get a complete view of the underwater environment

Specifications:

• Screen size: 12 inches
• Dimensions: 347.5 mm x 225.5 mm x 82.9 mm
• Voltage: 12V DC (10.8-17V DC)
• Power consumption: Max 3.6A @ 13V DC with full brightness and sonar active
• Mount Type: Gimbal Bracket, Front Dash Flush Mount, Rear Dash Flush Mount

What is included in the package:

• PC-30-RS422 power cable for HDS series
• HDS-12 LIVE bracket
• HDS-12 LIVE sunscreen
